Object Leader |
Scroll |
You can create one or more leaders and add them to the object. The leaders will become part of this object.
Leaders may be added to the following objects:
•macro-elements (including library macro-elements),
•inserted fragments,
•inserted images from views of other drawings.
The object with its leader is processed by the system as a single entity (to be selected, displaced, copied and deleted as a whole). In the meantime, you can edit leaders separately from their objects. In other words, you can copy an existing object and then add or remove branches and configure them.
The method of adding a leader to an object enables to create non-standard designations (see the Figure).
|
|
|

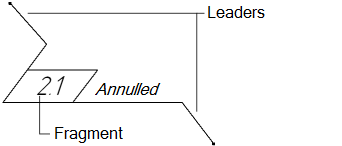

Examples of objects with leaders
