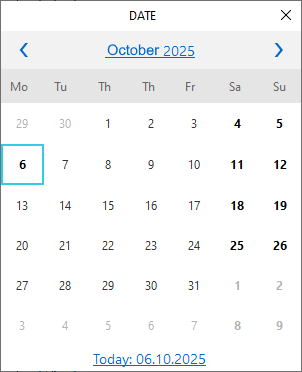

Double-click on any field where you need to enter a date, and the Date dialog box will appear on the screen (see figure).

By default, the current date is active in the dialog box. To select it, click on the Today link at the bottom of the dialog box.

You can select a different date using the lists of years, months, and days. The lists open sequentially: first the days are displayed, then the months, then the years. To open them, click on the corresponding links at the top of the dialog box.

After pressing the <Enter> key or double-clicking the mouse, the specified date will be automatically placed in the corresponding field of the stamp, and the dialog box will close.

Selection of date when filling in the title block
