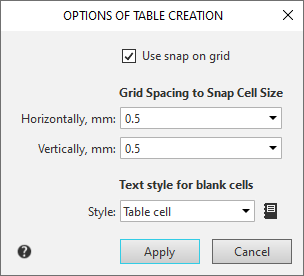

Options of Table Creation dialog |
Scroll |
This dialog appears after calling the Create from File command and specifying the fragment file when working with New Table creation dialog.
In it, you can assign parameters for a table created from a graphic fragment.
Description of Controls
Name |
Description |
|
Snap to Grid |
Enable this option if cell dimensions must be discrete (any multiples). In this case, when forming the table, the dimensions of the cells shown in the table fragment will be rounded to the nearest multiple of the specified step number. If the option is disabled, the dimensions of the cells of the resulting table will coincide with the dimensions of the cells in the graphic fragment. |
|
Grid Spacing to Snap Cell Size |
This group of options is available if the option is enabled Use snap by grid. You can set the pitch value horizontally and vertically. The dimensions of the cells of the formed table will be multiples of the specified values. |
|
Text Style for Empty Table Cells |
This field displays the name of the style assigned to the text in empty cells of the table in the fragment (text style of filled cells when forming a table from a fragment is saved). To assign a system style to text in empty cells, expand the field list and select the desired style. To assign a style other than the system style, select Other style... from the list or click the Add styles |
After setting all the parameters, click OK to create the table. To exit the dialog without creating a new table, click Cancel.
