Working with BOM styles dialog |
Scroll |

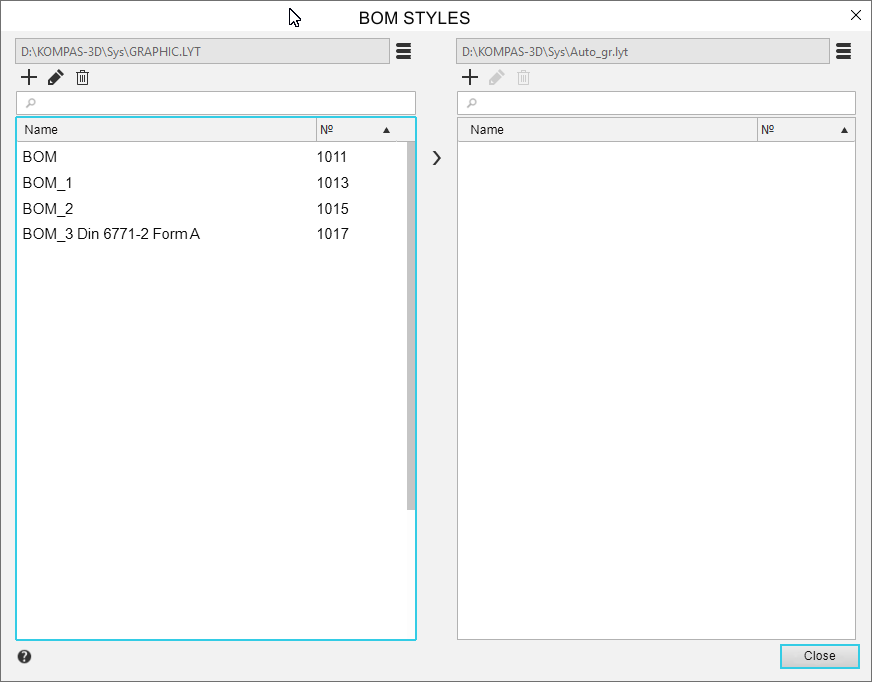

Allows you to create new or edit existing styles of BOMs, as well as perform various operations with style libraries (they are stored in files with the *.lyt extension).
The dialog has two viewports, which can display lists of specification styles stored in two different libraries. Only one viewport can be active at a time. To activate the desired viewport, left-click it. A frame appears around the viewport to indicate that it's active.
Above each window is a search field where you can search for a specification style by name. To find the desired style, enter the desired characters in the search field, then select the desired string from the list of search results that appears.
The styles in the lists can be sorted by name or number. To change the sorting, click the header of the required column. A triangle is displayed in the column header by which styles are sorted. Its position indicates the direction of sorting — ascending or descending.
Description of Controls
|
Name |
Description |
|
Show Library |
To connect another style library, click this button. |
|
Create |
The button allows you to create a new BOM style. Calls the BOM Style dialog. When creating a new style you can use any of objects already existing in the library as the prototype. To do this, before pressing the button select the prototype object in the library. The dialog that appears after you click the button will contain not the default values but values matching the prototype parameters. |
|
Edit |
To go to the style editing dialog, select its name from the list and click this button. |
|
View |
This button replaces the Edit button when selecting a non-editable specification style. Allows you to view the style selected in the list. Styles are non-editable, for example, if an open style library is set to Read-Only. Creating or deleting styles in such a library is not possible. |
|
Copy |
To copy the style selected in the list to the library opened in the adjacent window, click the required button. |
|
Delete |
To remove one or several styles from the library, select their names in the list and click this button. |
To close the dialog, click Exit.
