Working with title blocks dialog |
Scroll |
Allows you to create new or edit existing document title blocks, as well as perform various operations with title block libraries (they are stored in files with the extension *.lyt).

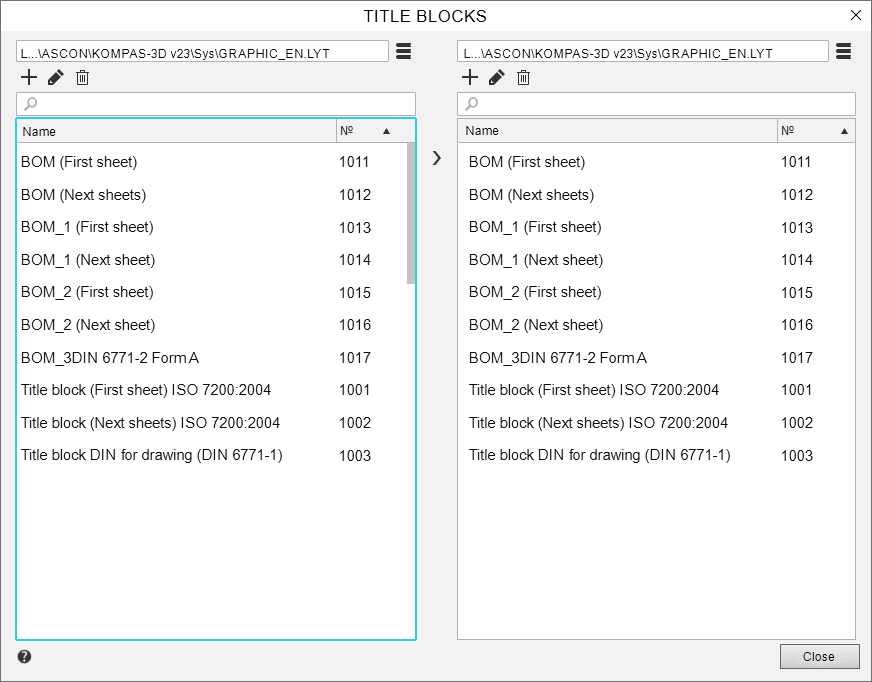

The dialog has two representations, which can display lists of title blocks stored in two different libraries. Only one representation can be active at a time. To activate the required representation, left-click it. A frame appears around the representation to indicate that it is active.
Above each window is a search field where you can search for a title block by name. To find the desired title block, enter the desired characters in the search field, then select the required line from the search results list that appears.
Title blocks in lists can be sorted by name or number. To change the sorting, click the required column header. A triangle appears in the column header by which styles are sorted. Its position indicates the sorting direction—ascending or descending.
Description of controls
|
Name |
Description |
|
Show Library |
The button allows you to connect another library of title blocks. It calls the Select Library File dialog. |
|
Create |
The button allows you to create a new title block. Opens the Title block creation dialog. When creating a new style, you can use any of the objects already existing in the library as a prototype. To do this, select the prototype object in the library before clicking the button. The dialog that appears after clicking the button will contain values corresponding to the prototype's parameters, not the default ones. |
|
Edit |
The button allows you to edit the title block selected in the list. Invokes the title block editing dialog, similar to the dialog for its creation. |
|
Copy |
This button replaces the Edit button when selecting a title block that is not editable. It allows you to view the title block selected in the list. Title blocks are not editable, for example, if the open title block library is set to Read-Only. Creating or deleting title blocks in such a library is not possible. |
|
Copy |
The buttons allow you to share title blocks between different libraries. To do this, open the desired libraries, select the element, and click the Copy button. |
|
Delete |
The button allows you to remove one or more title blocks from the library. To perform deletion, select the items in the list and click this button. |
To close the dialog, click Exit.
