The dialog can also be fetched on creation of a report by selecting the Other... in the list of styles in the Parameters toolbar.
, section

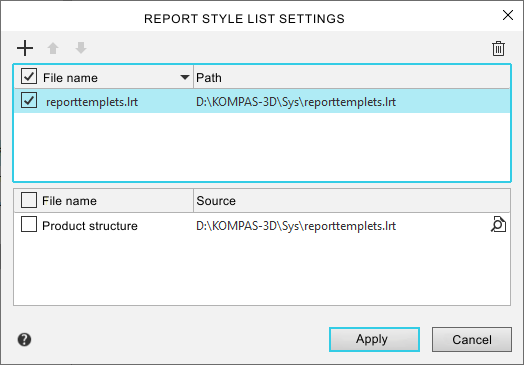

The dialog contains two windows - upper and lower.
•The top dialog box displays a list of style libraries, presented in table format. Each row contains the library file name and path. At the beginning of each row is an option for connecting a library. When enabled, the styles contained in the library are displayed in the lower dialog box and become available for connection. The option in the row with the column headers allows you to connect all libraries in the list at once.
•The lower dialog box displays a list of styles in the connected libraries, presented in table format. Each table row contains the style name and the path to the library file containing that style. At the beginning of the row is an option for connecting a style or all styles in the list at once (in the row with column headers).
•The objects in the lower window can be sorted by any of the table columns. To select a column for sorting, click its header. A triangle appears next to the header, indicating the sorting direction. If the triangle points downward, the list is sorted in descending order; if the triangle points upward, the sorting is in ascending order.
Controls of the Style List Customization Dialog
Element |
Description of the setting |
|
|
Add |
The button allows to add a library to the list. After pressing it, a standard file selection dialog appears on the screen. |
|
Move Up/Down |
The buttons allow to move libraries in the list. To move a library up, select its name and press the Move Up button, and to move it down – press the Move Down button. The selected library will move by one item in the specified direction. |
|
View |
The button allows to browse the parameters of a selected style. After pressing it , a dialog for setting up style parameters in the preview browse mode appears. |
|
Delete |
The button allows to exclude a selected library from the list. |
In the upper dialog box, connect the report style library, and in the lower one, connect the style. More about report style connecting...
To complete the settings, click Apply. To exit the dialog without saving changes, click Cancel.
