Name

Description

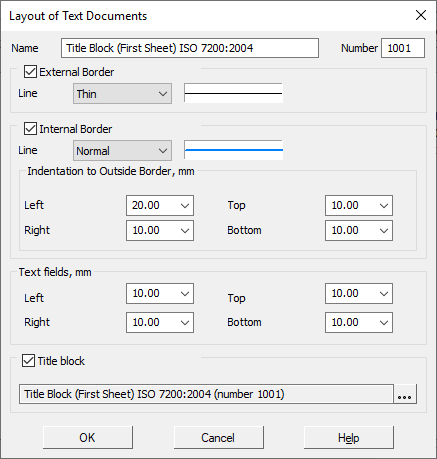

Name

A field to enter the layout name. Typically, the name contains a brief information about the layout designation.

Number

The field to enter the layout number. The rules for numbering designs are given in section Number of the title block and layout in the library.

External Border

This option manages the presence in the layout of the external border, limiting the format.

When this option is enabled, the elements for setting the border line drawing style are available:

•list Line – allows you to select the desired line style;

•field of view – shows the line appearance of the selected style.

Internal Border

This option manages the presence in the layout of the internal border.

When this option is enabled, the elements for setting the border line drawing style are available and indents of the inner border from the outer:

•list Line – allows you to select the desired line style;

•field of view – shows the line appearance of the selected style;

•field group Indentations to outside border – allows you to set the amount of indents of the lines forming the inner frame from the outer border; values are entered in millimeters.

Text fields

A group of fields allows you to specify the distances between the corresponding sides of the inner frame and the borders of the input field. From the border of the input field, the values of indents and a red line of text are counted.

Title block

This option manages the presence in the layout of the tables of the title block.

When this option is enabled, the following elements of the selection of the title block:

•Select button — allows to select the required title block from the list of title blocks contained in the current library of layouts *.lyt; it invokes a dialog with the list of title blocks;

•title block display field — used to display the name and number of the selected title block;
