In the Document tree, the view insertions and fragment insertions are combined into View Insertions (xN) and Fragments (xN1) groups. N and N1 in the group names are numbers corresponding to numbers of view insertions and fragment insertions.

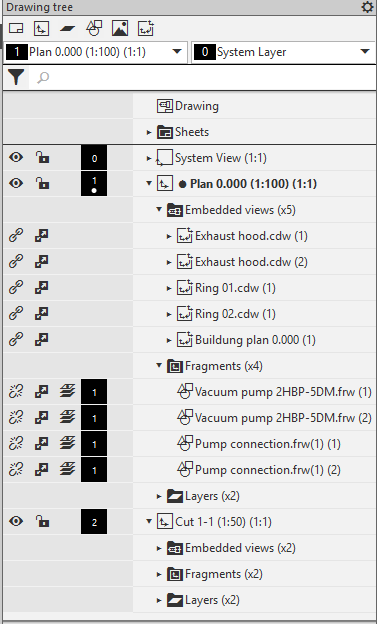

In the Drawing tree, the inserted views and fragments are located in their view branches (see the picture). In the Fragment tree, the inserted fragments are located right below the root element.
The names of insertions in the Document tree have the following format:
Name + (N), where
•Name — name of the insertion as specified when the insertion has been created/edited;
•N — insertion instance number; numbers are assigned within the master view.
To the left of the insert name, icons designating the values of the following properties are displayed:
•method of insertion:
insertion by implementation,
Insert a link,
•scaling of extension lines and dimension leaders in the insertion method:
scaling is enabled,
scaling is disabled,
•method of insertion placement in the layers (only for fragment insertions):
to current layer,
on layers-sources.
To modify any of these properties, click the corresponding icon in the row of the insertion you need. The property value will reverse. The icon in the tree will also change.
If you select the insertion in the tree, the insertion will be selected in the graphic area; and vice versa.
|
