Name

Description

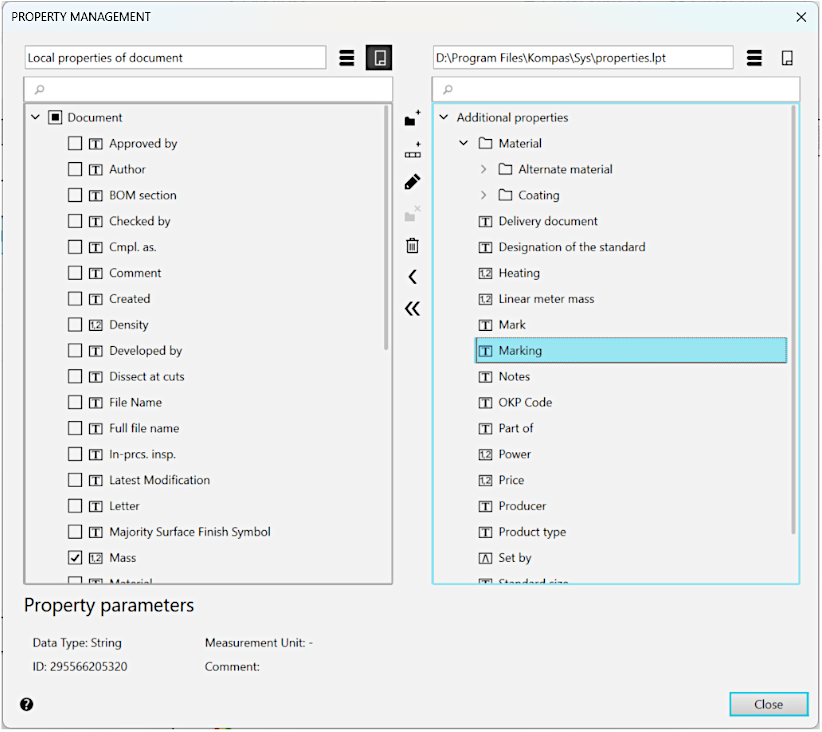

Show Library

The button allows you to display the contents of the property library in the active viewing window. Calls the standard Windows open file dialog.

Show Document

The button allows to display the list of properties of the current document in the active viewing window. If there are no open documents, the button is unavailable.

Create Section
Merge into a section

The button allows you to add a new section to the property library. A section is added to the library, the contents of which are displayed in the active view window. After you click the button, a dialog appears on the screen in which you need to enter the name of the new section. To merge several properties into a section, select them from the list and click the Merge into Section button (the button will appear instead of the Create Section button).

Destroy the partition

To remove a section from the list, press this button. The button is available if the section is selected in the list.

Create Property

The button allows you to add a property to the property list of a document or property library. Opens the Property parameters.

The property is added to the list of properties displayed in the active view window.

Preview

The button allows you to view the parameters of the property specified in the list. Fetches the Property parameters dialog. In the View mode you cannot edit the data contained in this dialog box.

Edit

The button allows you to change the properties of a property or section of the property library specified in the list. Calls the property or section editing dialog.

Delete

The button allows you to delete the specified property or section of the property library.

Copy

The button allows you to add a property to a document or property library. After clicking this button, the property selected in the active view window is copied to the adjacent window.

Property can be copied

•in the current document – from the property library or component of the current assembly (when working with assembly)/species inserts and fragments (when working with graphic document),

•to the property library – from another library, current document or component of the current assembly (when working with an assembly) / insertions of views and fragments (when working with a graphic document).

Move

The button allows the exchange of properties between property libraries and documents. After clicking this button, the selected property is transferred from the active viewing window to the neighboring window.

The property can be transferred to the current document only from the property library, and to the library – from the current document or another library.
