To work with numeration groups, the Numberingtoolbar is used. The display of the bar is managed by the Settings — Bars — Numbering command.

The toolbar contains a dropdown list of numeration groups, a list of objects of the current group, and the buttons which let change the parameters and structure of groups. Elements of the toolbar panel are available if none of commands is not started.

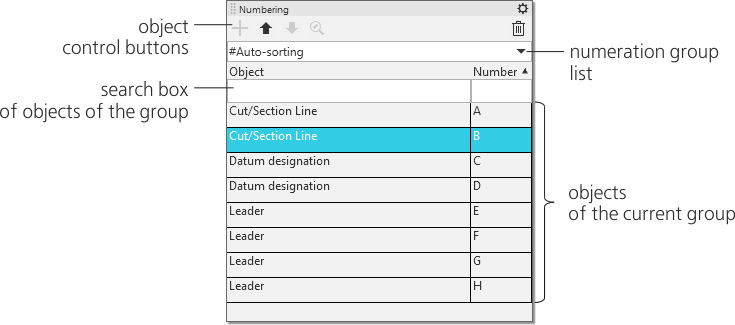

The Numbering toolbar

The list of objects of the current group is displayed on the Numbering toolbar as a table. For each object in the table, the type and number are specified. By default, objects of the group are located in ascending order of their numbers. You can enable display of objects in the decreasing order of numbers. To that end, click the heading of the Number column of the table of objects.

Setup of parameters of the system numeration groups, as well as addition and setup of the user-defined groups is performed with the menu commands of the . The following commands are available:

•Create Group... — Calls Setting Name for Custom Numbering Group dialog and User groups settings dialog,

•Settings... — invokes the settings dialog corresponding to the current numbering group: system or custom.

To change of set of group objects and the order of their sequence, it uses buttons for adding, movement, and deletion of objects, located in the heading of the Numbering toolbar. These actions are described in the section Tricks for numeration.

Scale to Selected Objects button in the panel header lets change the display scale of the document so that in it the object selected on the panel is displayed at the maximum possible scale.
