KOMPAS-3D allows you to create louvers by a straight line in a sheet part. There are two types of the louver available:
•elongated (Figure a),

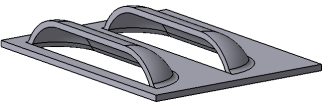

•truncated (Figure b).
|
|
a) |
b) |
Louver types
Segments are used as sketches for the louver. The sketch should be entirely located within the base face of the element.
