1.The detailing of documents with additional columns for the customer's representative has been developed; corresponding styles for BOMs have also been developed (the list of detailing and styles is provided below). Besides, based on these formats and styles, document templates are created and placed in the folder \\Templates\\Additional graphs for BOM:
• Group BOM (option A) with BOM GOST 2.113-75.spt;
• Group BOM (type B) with PZ GOST 2.113-75 F.1, 1a.spt;
• Type B group BOM with PZ GOST 2.113-75 F.1, 1v.spt;
• Type B group BOM with GOST 2.113-75 PZ F.1b, 1a.spt;
• Type B group BOM with PZ GOST 2.113-75 F.1b, 1v.spt;
• Group BOM (less than 3 versions) according to BOM GOST 2.113-75.spt;
• Basic specification with PZ GOST R 2.106-2019.spt;
• Text. constr. doc. with PZ. First Sheet. GOST 2.104-2006.kdt;
• Construction drawing with BOM. First Sheet. GOST 2.104-2006.cdt.
Document layouts and BOM styles, embedded in the file \\Sys\\GRAPHIC.lyt:
• detailing (and corresponding title blocks):
• Construction drawing with PZ. First Sheet. GOST 2.104-2006 (number 101);
• Text. constr. doc. with PZ. First Sheet. GOST 2.104-2006 (number 103);
• BOM with PZ. First Sheet. GOST R 2.106-2019 F1 (number 1017);
• Group BOM with PZ. First Sheet. GOST 2.113-75 C1. (number 1020);
• Group BOM with PZ. First Sheet. GOST 2.113-75 C41b. (number 1022);
• Group BOMs with DP. First Sheet. GOST 2.113-75 F.5. (number 1051);
• BOM styles:
• Basic specification with PZ GOST R 2.106-2019. (number 101);
• Group BOM (type A) with Design Documentation (GOST 2.113-75). (number 1015);
• Type B group BOM with PZ GOST 2.113-75 F.1, 1a. (number 1017);
• Type B group BOM with PZ GOST 2.113-75 F.1, 1v. (number 102);
• Type B group BOM with PZ GOST 2.113-75 F.1b, 1a. (number 103);
• Type B group BOM (variant B) with PZ GOST 2.113-75 F.1b, 1v. (number 1018);
• Group BOM (less than 3 versions) with GOST 2.113-75. (number 104).
2.When creating a link to the property of an object, it became possible to select a constituent part of the product that is not visually represented but is merely a set of properties. Previously, it was impossible to select such a component part and, consequently, create a link to its property.
3.You can now manually change the sequence of selected document templates arbitrarily.

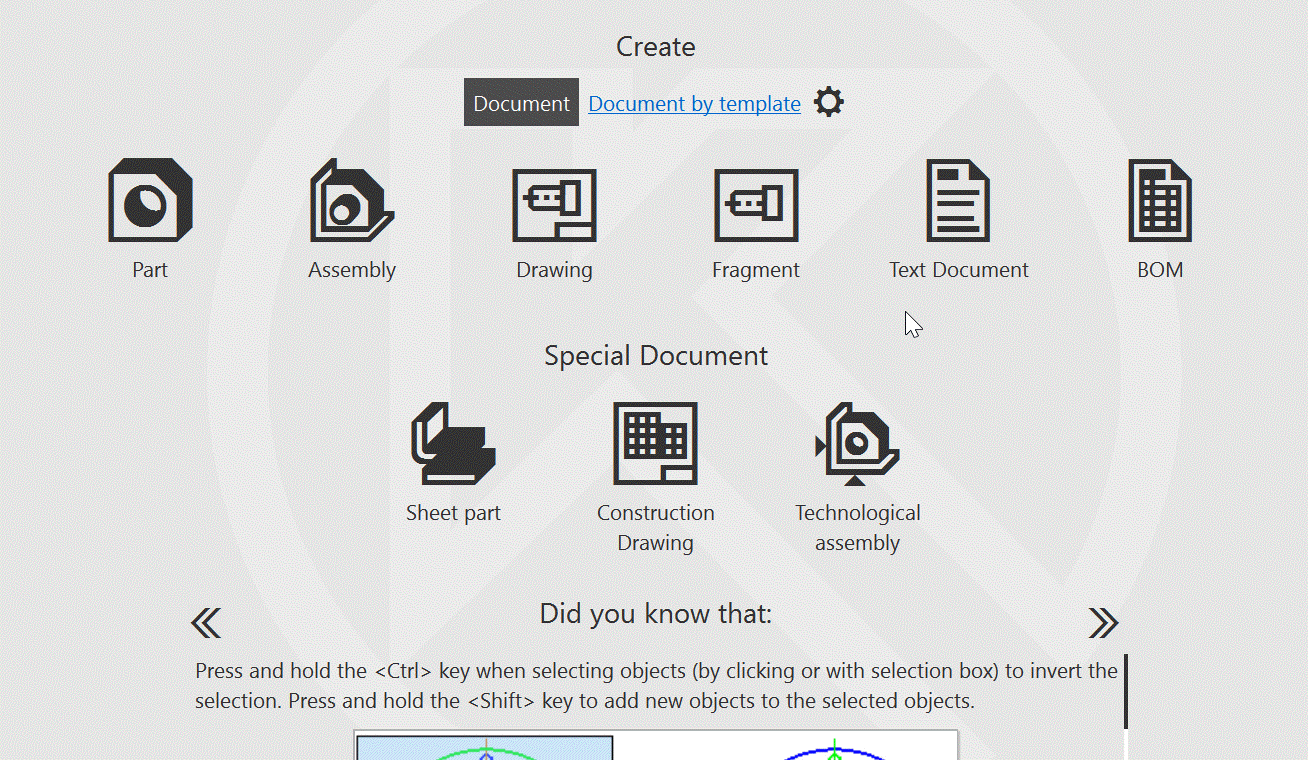

Assignment of selected templates and configuration of their arrangement order
4.In the About dialog, a Details button has been added, allowing you to view the list of installed KOMPAS-3D modules (KompasFlow, Shafts and Mechanical Transmissions, Materials and Assortments, Standard Components for KOMPAS, Extended Proprietary Format Readers, APM FEM, Unit Converter, Application Development Tools) and their versions. If the modules are not installed, then the Details button is missing in the dialog.

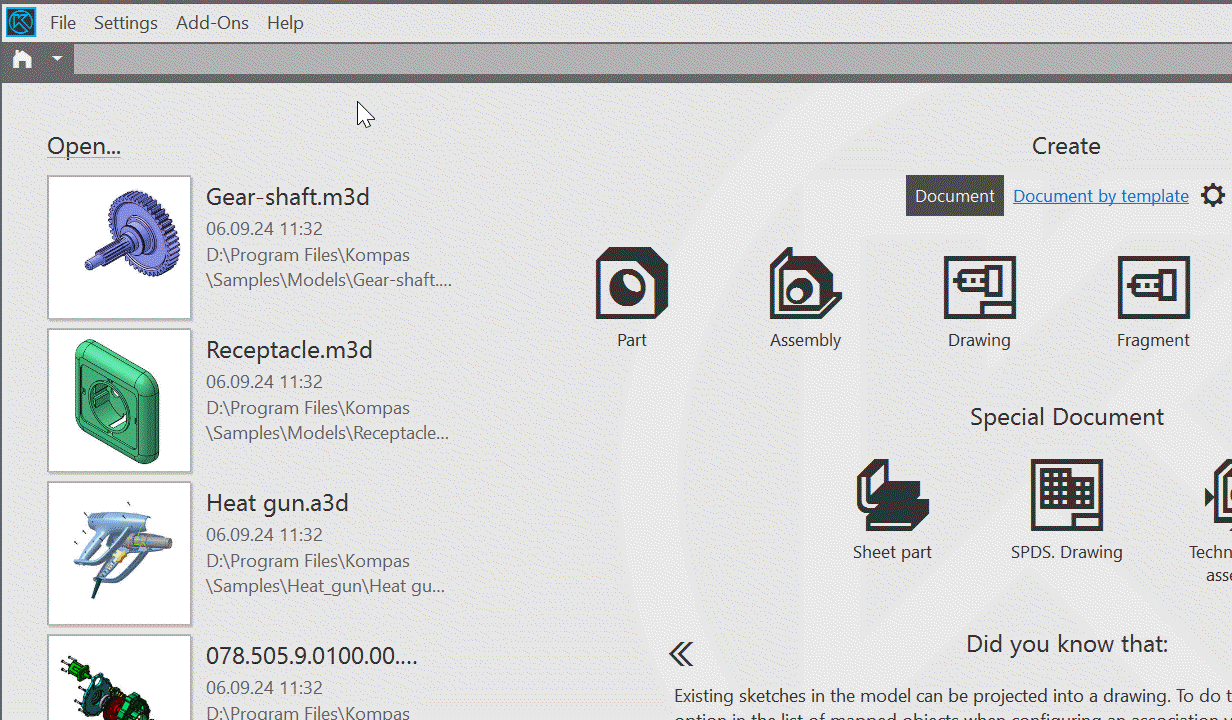

Viewing information about installed modules
5.For KOMPAS-documents saved in KOMPAS-3D v23, the version number in Windows Explorer is displayed not in two, but in four groups of digits, for example: 23.0.0.1929.
6.The Microsoft access database engine component is no longer installed with KOMPAS-3D — neither in case of a full installation nor in case of a custom installation. If necessary, it can be installed manually by running the corresponding file from the \\Support folder of the installation package.
