Allows you to create new or edit existing line/hatch/text styles, as well as perform various operations with style sets and libraries.

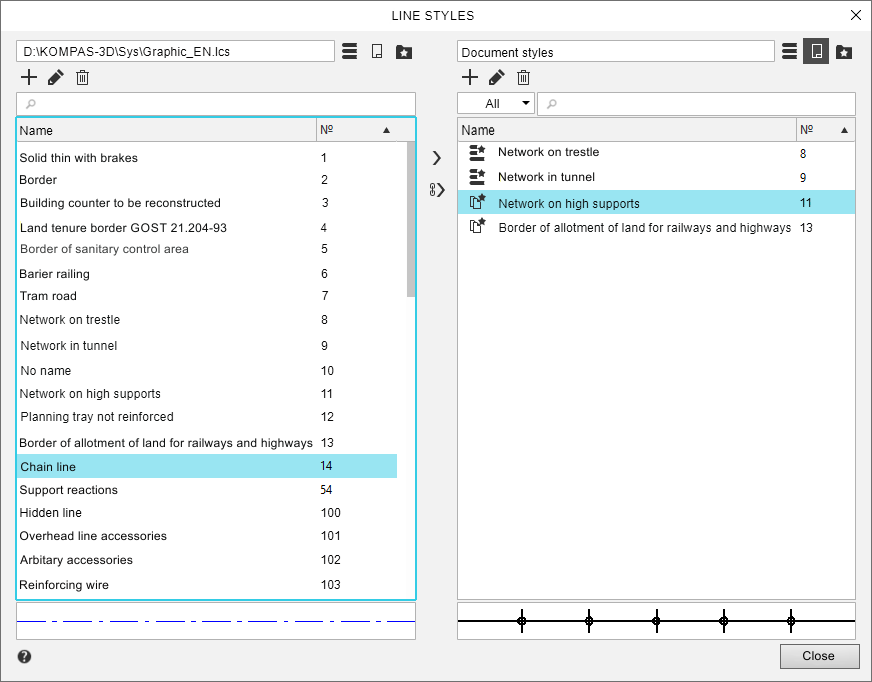

Depending on which command is called, the corresponding dialog appears on the screen:
Line styles...
Hatch styles...
Text Styles...
The dialog has two representations, which can display lists of styles stored in different locations—a library, a style set, or a document. To activate the required representation, left-click it.
Above each window is a search field where you can search for a style by name. To find the desired style, enter the desired characters in the search field, then select the desired string from the list of search results that appears. When working with a document or set, the search is filtered by style type—a filter list is displayed to the left of the search field.
The styles in the lists can be sorted by name or number. To change the sorting, click the header of the required column. A triangle is displayed in the column header by which styles are sorted. Its position indicates the direction of sorting — ascending or descending.
Description of Controls
|
Name |
Description |
|
Preview Window |
This button displays a list of styles stored in the library in the active window. Clicking this button will display a dialog box asking you to specify the name of the style library file to open. |
|
Show Library |
This button displays a list of document styles in the active window. Clicking it will display a list of styles stored or used in the current document. If no documents are open, or if the current document cannot contain objects whose styles you are working with, this button is unavailable. For example, if a text document is active, the Show Document button will be unavailable in the line and hatch style dialogs. |
|
Show Set |
The button allows you to display in the active window a list of styles stored in the set. After pressing this button, a dialog with a list of previously created style sets will appear on the screen. In this dialog, you must specify the name of the desired set. |
|
Create |
The button allows you to create a new style. After pressing it, a dialog for creating and editing a style appears on the screen. The newly created style will be stored in the document (set, library), list of styles which is displayed in the active viewer. When creating a style you can use any of styles already existing in the library as the prototype. Select the prototype object before you press the button. The dialog that appears After you click the button will contain not the default values but values matching the prototype parameters. |
|
Delete |
The button allows you to edit the highlighted style. After pressing it, a dialog for creating and editing a style appears on the screen. |
|
Edit |
The button allows you to delete the selected style (styles) from a set, document or library. For more information on deleting styles, see section Deleting individual styles, sets and style libraries. |
|
Copy |
This button allows you to exchange styles between libraries, style sets, and documents. Clicking it copies the selected style(s) to the adjacent representation and adds them to the list as embedded. Styles embedded from libraries do not maintain links to the files in those libraries. This button is available if there are selected styles in the list of library styles or styles from a style set. |
|
Copy by link |
This button allows you to exchange styles between libraries, sets, and documents. After clicking it, the selected style(s) are copied to the adjacent representation and added to the list as a library style. Library styles maintain a link to the library files from which they were added to the list. The button is available if there are selected styles in the list of library styles or styles from a set. |
For convenience, searching and selecting the appearance of the line/hatch style is displayed in a special preview window.
To complete the dialog, click Exit. After the button is pressed, all additions, deletions, and changes to any styles will be automatically saved.
