The position change operation allows to mode a solid or a surface to an arbitrary point of the model and rotate it to an arbitrary angle.
The operation result is a new object – a solid or a surface. Objects derived from the initial ("old") solid or surface remain associated with this solid or surface. A new solid or surface may be involved in subsequent operations (including position change operations) without any constraints.
|
|
a) |
b) |
Position change operation

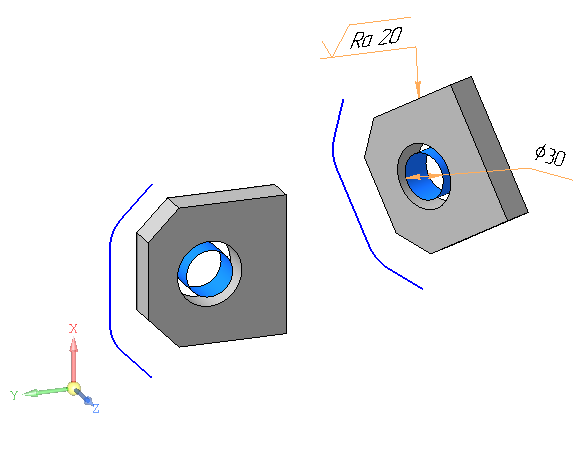

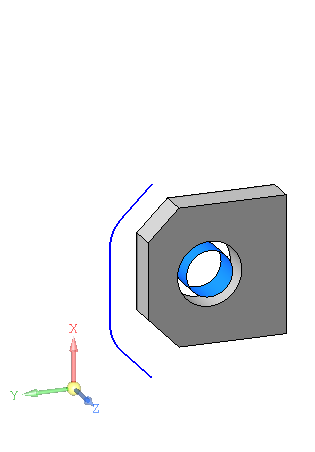

a) body, surface and curve in the initial position, b) the result of the operation (the original objects are displayed)
The change in the position of a body, surface, curve or point is performed in a user-defined coordinate system (for the object coordinate system, see the section Object coordinate system).
|
The reposition operation applies only to bodies, surfaces, curves, and points constructed in the model itself (not in any of its components). |
