Setting the properties of the product and its constituent parts

General procedure for setting properties

The values of the properties of the product are located in the cells of the first row of the table on the Product BOM panel, while the values of the properties of the constituent parts of the product are located in the cells of the remaining rows. In most cells, values are entered using the keyboard. They become available for input after double-clicking.

Property cells Developed, Checked, Approved, Technical control, Quality control, Signed and Letter have an icon on the right side . After clicking on it, a user menu to select a row, the text of which will become the property value. Arbitrary text entry in the listed cells is also available.

The icon is also available in the property cell Parameter unspecified roughness, but for this property it allows invoking the dialog for setting the roughness value, see further.

An additional way to assign a property value is to create a reference. To create a link, select the cell of the desired property with a single mouse click, invoke the Insert Link command from the context menu, and configure the link parameters in the appearing window of the dialog. Some properties cannot obtain values by reference — for them, the Insert link command is unavailable.
More details on the link in a property value...

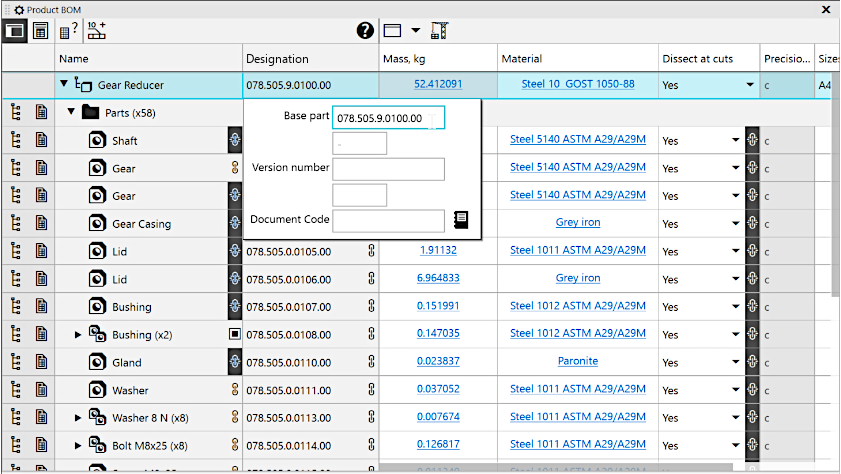

Note that certain properties cannot be edited on the Product BOM Panel — the corresponding cells have a gray background (see illustration).For example, the value of the property Accuracy Class cannot be set in the Product BOM Panel for either the product itself or its constituent parts (The accuracy class is selected in the section General Tolerances of the settings dialog); the Quantity property can only be set for subassemblies, not for the product, and the Authorproperty, conversely, can only be set for the product, not for its components.

the product. The panel for entering Base Part Designation, Version Number, and Document Code appears after double-clicking in the cell of the Designation column.

The procedure and notes on entering individual property values

The procedure and the notes on entering the values of individual properties on the Product BOM panel are shown in the table. Values not listed in the table of properties are set in the usual way — as described above.

The procedure and notes on configuring the property values on the Product BOM toolbar

	Property	Setting a property value
	Name	The value of this property can be entered as plain text or a link (see above). If the value must include both plain text and a link, or multiple links, use the special text input dialog. To access it, select the cell with a single mouse click, open the context menu, and select the Additional Data command from it. If a label created using the text input dialog includes a link, the entire label text is displayed in blue and underlined. Clicking on it brings up this dialog again. The exception is a name consisting of a single link: clicking on it opens the dialog for creating and editing the link.
	Designation	After double-clicking in a property cell, the toolbar for entering the designation displays on the screen. Using this panel you can enter the base part of the designation and the version number, and: •for a product — document code, •for a constituent part — additional number. After completing the entry, press the <Enter>. For more details on working with the Designation Task Panel...
	Number	The cell becomes available for input after double-clicking it. The default value of the property Quantity for the constituent part is 1, for group strings — the sum of the numbers in the corresponding cells of the group. If the quantity value for a group row was changed, the cell background becomes yellow and automatic aggregation becomes disabled. To restore the summation, call the Calculated value command from the cell context menu. Changing values for constituent's quantities does not change cell background. Setting quantity for product and for assemblies is not supported, Excluded from the current style BOM or from the Product BOM.
	Material, Density, Mass	After clicking in any of these cells, a the dialog, in which you can set the material and its density, choose the method of calculation by mass, and also set the hatch style for display on sections. If the mass value for a product or a constituent is not up-to-date, the corresponding cell has pink background. To update mass value, click Recalculate CMP button on the Product
	Reference Number	Can be entered manually or determined automatically. To automatically determine, click Set Ref.Nos. button. The button is available on the Product BOM panel if the following conditions are met: •The model is an assembly, •display of column Position in the property table enabled, •BOMs connected to the assembly, none. More details on position numbers arrangement...
	BOM section	After clicking this cell, a Select BOM Section dialog.
	Majority Surface Finish Symbol	When you click this cell, a menu appears where you can select a surface treatment method.
	Parameter for Majority Surface Finish	This cell has the in the right part. After clicking it you will see the menu with one command – Setting the sign of unspecified surface finish. It invokes the the dialog, in which you can select the type of symbol and enter the designation text.
	Dissect at cuts	After clicking in this cell a menu appears with the commands to enable/disable dissecting at cuts for a product or a component in associative drawings.
