Deleting parts of detailing objects and library macro-elements |
Scroll |

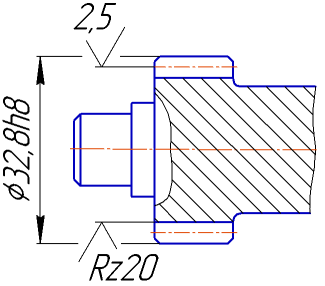

Commands for trimming curves, alignment by border and region clearing can be applied to individual elements of dimensions and designations, as well as to images inserted from libraries. The figure shows examples of editing some of the listed objects.
|
|
a) |
b) |
a) dimension extension line, b) mounting element (pin)
However you should remember that geometric objects (or their parts) deleted in suck a way actually just become temporarily invisible. Just the first rebuilding will fully display the detailing object or library macro-element again.
