Gap |
Scroll |
Gap is the distance at which the sides of the corner to be capped would be located from each other.
Gap is measured in the projection of the sheet solid onto the plane that is perpendicular to the sides of the angle. Such a plane can be any plane perpendicular to the intersection line of outer or inner faces of the angle sides (Fig. a). In this same plane, the enclosed angle is measured (Fig. b).
A gap value is set in the Gap field.
|
|
a) |
b) |

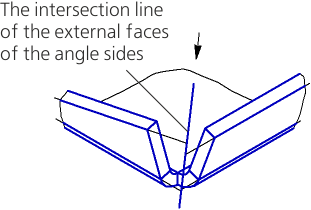

Gap measurement:
a) defining the position of the measurement plane,
b) part projection onto the measurement plane (view in arrow direction); capped corner
