Methods of plotting |
Scroll |
To select a beat construction method, use the Method group of buttons. The set of methods depends on the selected section shape. Select a method and set the required parameters.
Construction methods for each section shape are described in the Tables.

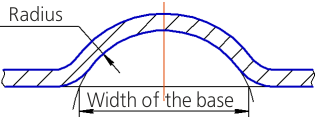

Construction methods for a round beat
Method |
Parameters |
|
|

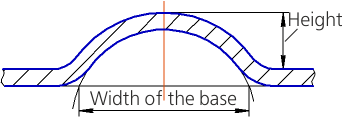

Height and width |
|
|

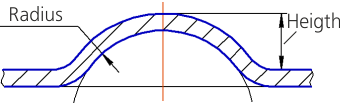

Height and radius |
|
|
Radius and Width |
|
|
To construct a round beat, its height should be less or equal to the radius. |

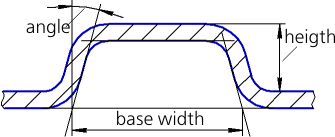

Construction methods of a U-shaped beat
Method |
Parameters |
|
|
Height, angle and width at the base |
|
|

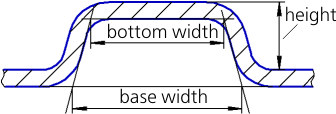

Height and two widths |
|
|

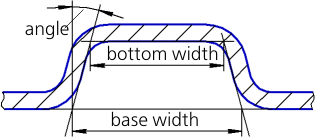

Angle and two widths |
|
|

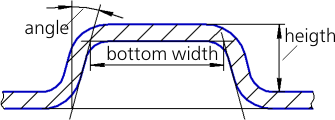

Height, angle and width at the bottom |
|
|
Drawing schemes of a U-shaped beat show a beat with Fillet of bottom edges. Enabling and setting bottom fillet is available in any construction method. |
Construction methods of a V-shaped beat
Method |
Parameters |
|
|

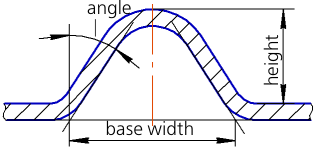

Height, angle and width at the base |
|
|

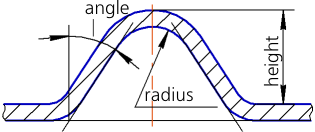

Height, angle and radius |
|
|

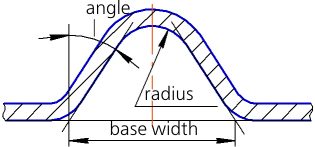

Height, angle and base width |
|
|
Height, radius and base width |
|
|
The minimum radius of a V-shaped beat is 0.0002 mm. |
