KOMPAS-3D v23

The element

Description

Preview Window

Displays a list of library styles.

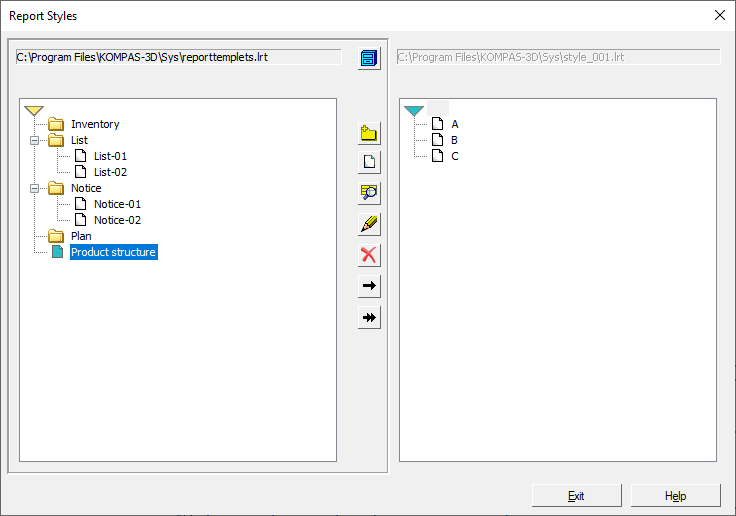

The dialog has two preview windows, in which they can simultaneously display lists of styles of two different libraries. Only one window can be active — it is selected with a frame. To activate a window, click it.

Style lists have a treelike structure, with sections, subsections etc. containing styles. The nesting level of sections is unlimited. All objects of the tree are automatically sorted by names inside each section.

Show

Library

Allows you to display in the active window a list of styles stored in the library, as well as create a new library. After clicking the button, a dialog appears on the screen in which you need to specify the name of the style library file.

More about creating a library...

New Section

Allows you to create a new subsection in the current section. After you click the button, a dialog appears on the screen in which you need to enter the name of the new section (subsection).

Create Style

Allows you to create a new style in the current section of the library. After you click the button, a dialog appears on the screen in which you must perform actions to creating a new style.

Preview

Allows you to view the selected style. After you click the button (or double-clicking on the style), the dialog for setting style parameters in the view mode appears on the screen.

Edit

Allows you to edit the selected object – section name (subsection) or style. When you press this button:

•if a section has been selected – the dialog for creating and editing its name;

•if style was selected — the dialog for creating and editing a style.

Delete

Allows you to delete the selected style or section. The section is deleted along with all the styles in it.

Attention! Restoring a deleted style or library section is not possible.

Copy

to the left/to the right

Allows the exchange of styles or sections between libraries. After clicking the button, the selected style or section is copied to the next window in the section that is current in it.

Buttons are available if the library is open in the inactive preview window.

Move

to the left/to the right

Allows you to transfer styles or sections from one library to another. After you click the button, the selected style or section is transferred to the current section of the neighboring window.

Buttons are available if the library is open in the inactive preview window.
