To create a rib in the model, you need to create sketch defining the shape of the external border of the edge. The rib is constructed from a line in the sketch to the solid. As a result a thin wall is formed, limited by the sketch line from one side and by faces of the solid from other sides. Rib examples are shown in the picture.
|
|

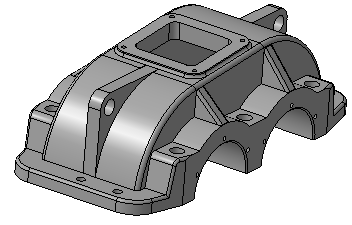

Rib examples
You can add ribs both to solids constructed in the model itself and to solids constructed in components.
|
The faces limiting an edge should belong to the same solid. |
