Mirrored Array |
Scroll |
You can create an array of objects (except components) which will be a mirrored copy (reflection) of source objects relative to specified flat object. Example of construction of a mirrored array is given at the figure.
|
|
a) |
b) |

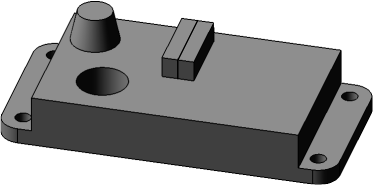

Mirroring of objects
a) original part, b) result of mirroring of base and lug
relative to median plane of rectangular jut
