Plate — a flat sheet element, adhered to a sheet part. The plate is formed by extruding a closed sketch. The extrusion depth can be either arbitrary or equal to the thickness of a sheet part.
You can add other sheet elements to the created plate: bends, holes, die forms, etc.
|
If the plate is fully or partly overlaps the bend, it becomes impossible. |
|
|
a) |
b) |
Plate creation

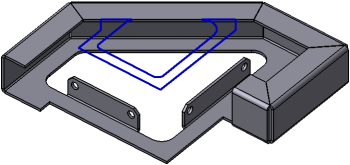

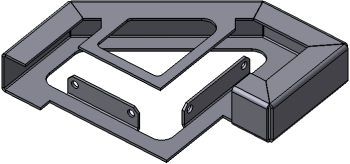

a) original part and plate sketch, b) construction result
