The section parameters of the strengthening edge are set in the Section group of elements.
To select an edge section shape, use the Section Shape group of buttons. The following options are available:
a) V-shaped (Figure a),
U-shape (Figure b).
|
|
a) |
b) |
Section shapes of a strengthening edge
The section parameters for different shapes are shown in the Figure below.
|
|
a) |
b) |

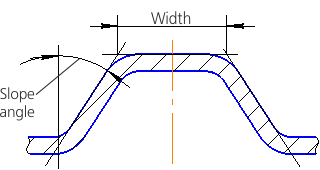

Drawing schemes for section shapes:
a) V-shaped, b) U-shaped
The minimum radius of a V-shaped strengthening edge is 0.0002 mm.
|
The drawing scheme of a U-shaped edge shows a strengthening edge with Fillet Bottom Edges. |
