Import and export |
Scroll |
1. Revised and improved export of the model:
•To establish export options, a process invoked by a command is now used instead of dialogs File — Exports.
•The ability to select model objects to be exported has been implemented (previously, it was possible to choose the type of objects to be exported, but not the objects themselves). Objects can be specified in the Tree or in the graphic area, including by marquee.
•Export via the command File – Save as... is still available, but establishing export parameters is not possible (the command Save with parameters is excluded).

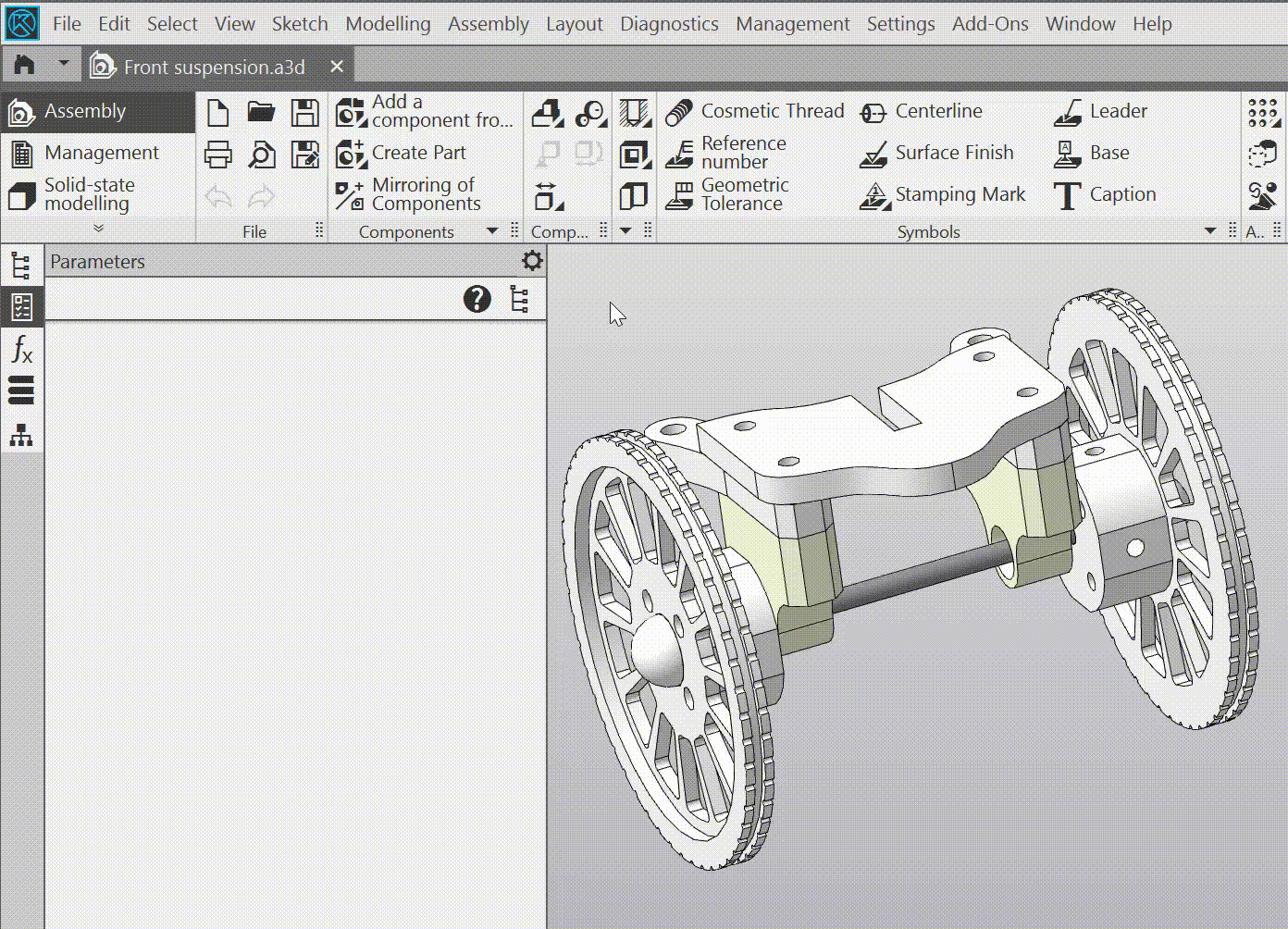

Exports the selected model objects
2.When saving a model in C3D, JT, and STEP formats, the ability to write tables has appeared.
3.When saving a model in C3D, STEP, and VRML formats, the option to enable/disable thread recording has been added.
4.There is now the possibility to read models from NX and SolidWorks CAD systems without installing the component Advanced tools for reading proprietary formats.
