After the Product Composition Panel is expanded, it displays the properties for which display is included in the current document.

To change a column set in the properties table (and a list of properties for the current model, accordingly), click Column Settings . The list of properties available in the current model will appear. The properties that are already displayed in the Product Composition Panel have a check mark and are located on top of the list. These are followed, after a separator, by properties not displayed in the table. To enable/disable display of a property, click it.

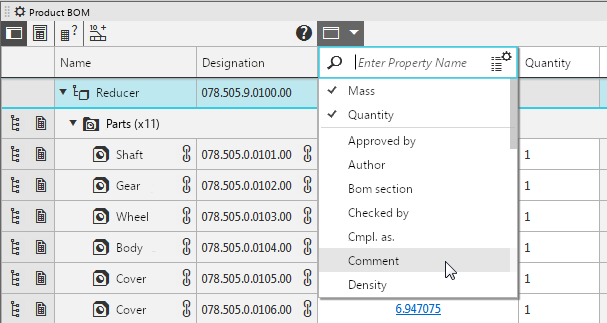

Selecting properties to display in the Product Composition Panel

You can search for properties in the list by entering the required property name in the top row.

In the upper right corner of the list there is a button to call the command Property management This command is also available in the context menu of any column header except Name and Designation. The command invokes dialog, in which you can create new properties for a document, copy properties from libraries to a document, and enable/disable the display of existing properties.

To hide a particular table column, disable its option in the list of the Column Settings button or, use the Disable property display command from the context menu of the desired column header. Hiding the Name and Designation columns is not possible.

The order of columns in a table can be customized. To move a column, hover your mouse over its header. The cursor will change to a four-headed arrow . Press and hold the left mouse button, then drag the column in the desired direction. When the column reaches the required position, release the button.

To change the column width, move your mouse to the right edge of the column header. The cursor will change to a double-headed arrow .Press and hold the left mouse button, then move the mouse in the required direction. When the required column width is reached, release the button.

The Name and Designation columns cannot be swapped.
