SVG Export Settings Dialog (multi-sheet drawing) |
Scroll |

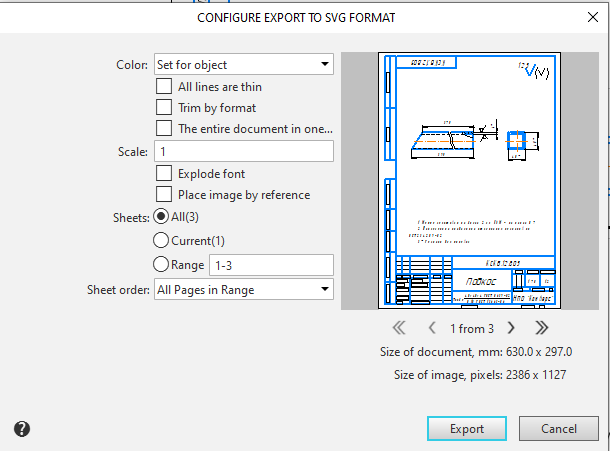

This dialog box appears on the screen if the SVG format was selected when saving a multi-sheet drawing.
In the dialog, you can configure the settings for saving the file in the selected format.
Description of Controls
Element |
Description |
|
Color |
A list from which you can select an image color. Learn more about the available options... |
|
All lines are thin |
An option that allows you to draw all lines with the thickness set for printing thin lines in the system line settings. By default, this value (line thickness on paper) is 0.18 mm. If this option is disabled, lines are drawn with individual thicknesses for printing. Line thickness on paper is a line style parameter. For system styles, it is set in the system line settings dialog, and for user styles, it is set during their configuration. The line style also contains a "screen thickness" parameter. Its value does not affect the export result. The status of the All lines are thin option does not affect the thickness of font lines. |
|
Trim by format |
Enabling this option means that each page of the SVG file will be limited to the format size specified in the KOMPAS document. Only those parts of the image that are within the format will be saved to the created file. When this option is disabled, the page size is determined by the bounding rectangle of the objects. |
|
The entire document in one file |
This option allows you to save all drawing sheets in a single file. If this option is disabled, each sheet is saved in a separate file. The file names for the saved sheets are generated as follows: sheet numbers are automatically appended to the name specified when saving the document. |
|
Scale |
A field for entering the image scale. |
|
Explode font |
An option that allows you to choose how text is rendered. •When this option is disabled, text is exported as text, i.e., as font characters. This allows the text to be copied from the SVG file later, for example. •When this option is enabled, the SVG file contains not the font characters themselves, but their image in the form of vector outlines. This method does not allow you to work with the text as text in the future. |
|
Place image by reference |
An option that allows you to choose how raster inserts are transferred. •If the option is disabled, descriptions of raster images in SVG syntax are generated in the resulting file. •If the option is enabled, the following occurs. In the folder where the SVG file is saved, PNG files are created containing the images inserted into the original KOMPAS document. The names of the PNG files are generated from the SVG file name and a sequential number. Links to the created PNG files are generated in the SVG file. When transferring the SVG file to another workstation, the PNG files must also be transferred. |
|
Pages |
A group of elements that allows you to select pages for saving.. |
|
All |
An option; when enabled, all pages of the document will be saved. |
|
Current |
An option; when enabled, all pages of the document will be saved. |
|
Range |
An option that, when enabled, means that the specified pages will be saved. You can enter page numbers and/or ranges of page numbers in the field, for example, «1, 3-5». |
|
Page Sequence |
A list that allows you to specify which pages in the range should be saved: all, only even, or only odd. |
|
Preview Window |
This window displays the page selected for recording. |
Once you have finished configuring the settings, click the Export button to start recording. To cancel the recording, click the Cancel button.
|
Exporting to SVG format is subject to the print output filter settings. In other words, the resulting file will contain only those objects from the KOMPAS document that are set to print in the system configuration. |
