1. Added commands for creating slots:
•Slot builds a figure from two parallel segments with equal length, mated by arcs with a radius equal to half the distance between the segments.
Building a slot

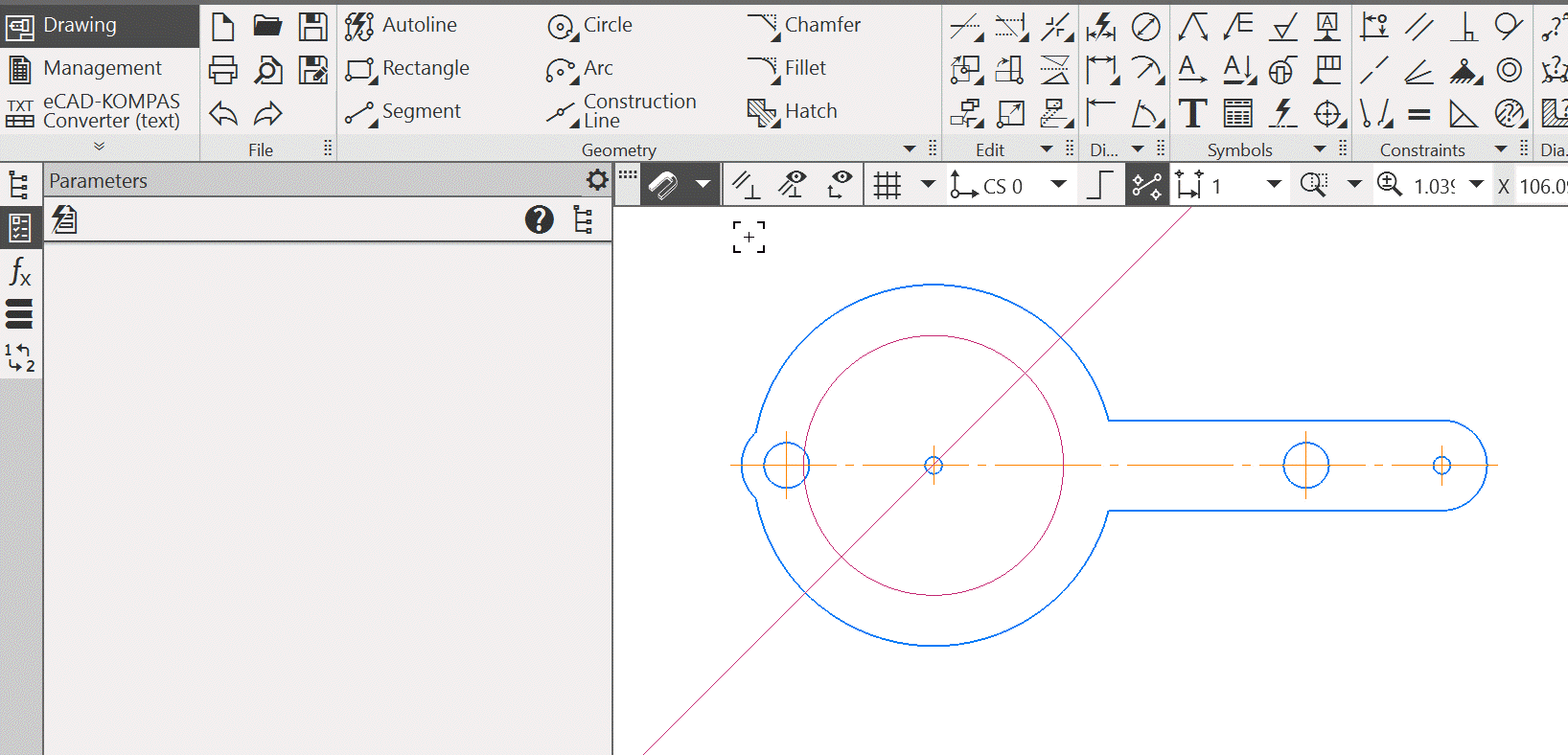

•Arc slot builds a figure from two concentric (large) arcs, mated by smaller arcs with a radius equal to half the distance between the large arcs.
Building an arc slot
Various methods are available to create a slot, as well as automatic placement of its centerlines and dimensions.
Slot and Arc slot commands are available both when working with graphic documents and in sketch mode during 3D modeling.
2.Such objects of a graphical document as the placement of the absolute coordinate system and the coordinates origin when applying constraints are used as ordinary points. For example, the coordinate origin can be linked to a segment with a constraint Curve midpoint . The result of linking an object’s defining point with the coordinates origin (when working in parametric mode) is the automatic creation of a constraint on the object. Merge points. A constraint Fix point was previously applied.
3.The "behavior" of the parameterized image after editing is now preserved to a significantly greater degree. For example, the result of splitting a segment is new segments constrained to each other by Collinear and Merge points constraints (previously, segments were obtained without constraints). The result of trimming by two points on a circle with an associated diameter dimension is an arc with an associated diameter dimension (previously, the dimension was deleted) and so on. Moreover, constraints applied to the end points of objects are preserved if these points are not deleted during editing (previously, constraints were lost).
