Toolbars |
Scroll |
A Toolbar contains commands similar by purpose. Toolbars required for running certain tasks are merged into sets. Some bars are included into different sets – to frequently used commands for convenience of use. For example, during the work with a part, the Construction objects toolbar is included into the Solid-state modelling and Sheet modelling sets. The File toolbar is included into all sets of bars.
The horizontal and vertical dimensions in the Toolbar Panel are limited. Therefore, part of the toolbar buttons can be hidden. Toolbars with hidden buttons have a black triangle in the heading. Click on heading to fully expand the toolbar.
|

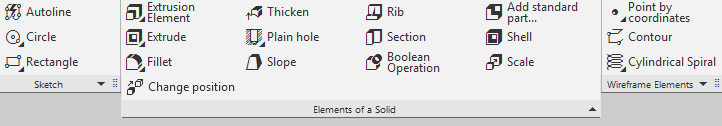

Expanding a bar to access hidden buttons
Commands for creation of objects of the same type are merged into groups. For example, groups make up commands for building segments, linear dimensions, bends in a sheet solid.
Toolbar command groups are represented on a toolbar by one of group commands: either by the first command in the list or by the most recently used command (it depends on the settings). The button of this command is marked with a black triangle in bottom right corner. To see all the commands of a group, hold the cursor on a visible command, keeping the left mouse button pressed.

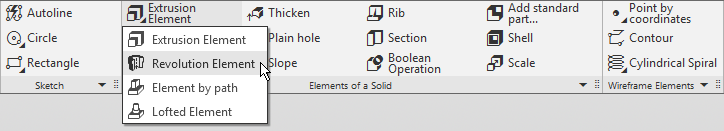

Expanding a team group
|
The buttons used to run all the commands of the group are present in the header of the Parameter Panel when running any of them (for example, see the Figure). So you can invoke the visible command of the group and then change the current command using the button on the Parameter Panel. |
