Sheet scale fitting |
Scroll |
Sometimes it may be necessary to place the document sheets on a certain number of print pages, and you don’t know the scale of the image on the paper in advance. To fit the scale, use the Fit Scale...
command.
Select the sheets of the documents, then run the command. After you run this command, the Fit Scale dialog box will appear on the screen. The dialog controls are listed in the Controls of the document sheets fitting dialog box.
|

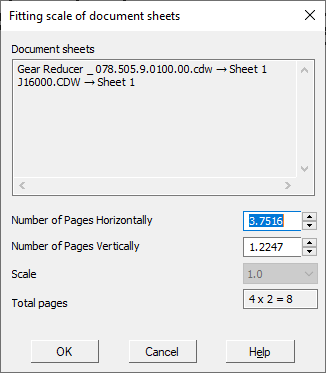

Fit Scale of Document Sheets dialog box
Controls of the document sheets fitting dialog box
The element |
Description |
|
Document sheets |
This is an information field. It contains the list of sheets selected for fitting the scale. For each sheet, the following information is displayed: file name of the document containing this sheet; number of the sheet in its document. |
|
Number of Pages horizontal, Number of Pages vertical |
Please provide the value for one of the parameters: you can enter it, input using the counter or select from the list. The second parameter will be calculated automatically. |
|
Scale |
Scale field. You cannot enter an arbitrary scale value; you can only select one of the predefined values in the list. In addition to standard values, this list contains the scaling ratios that were previously set when working with this dialog box. You can only use this field to set the scale if you need to scale just one sheet. When working with several sheets at the same time, this field will be unavailable (and it will be empty if the selected sheets use different scale ratios). |
|
Total pages |
It is an information field with the number of pages to be printed using the selected settings. |
The lower left corner of the bounding rectangle is the center of scaling of the selected sheets. If there is a gap between sheets, the adjusted scale applies to the gap as well.
|
If the source sheets had different scale ratios, then after scaling their scale ratios will remain different. |
|
It is recommended to select adjacent sheets. Otherwise, scaling of the selected sheets may result in overlapping with other sheets. To find overlapping sheets, you should call the Service — Find overlapping sheets command (see section Searching for overlapping sheets). |
