The Sketch Layers panel is used to work with layers created in a sketch. Toggling the Sketch Layers panel is similar to toggling the Layers panel in a model.

Drawing  Layer tree is similar to Fragment tree (they have different toolbars) and contains rows with names of layers and groups of sketch layers. Actions with layers in the Sketch layer tree are similar to actions when working with layers in a graphic document and are described in detail in section Layers. In the Sketch layers tree, the following actions are available:

•creation and deletion of layers,

•current layer selection,

•changing the layer state,

•establishing the layer parameters,

•creation a group of layers.

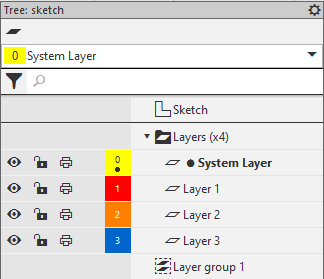

Sketch layer tree
